Safety Features
At Bruynzeel Storage Systems, safety is our top priority. We understand the importance of preventing accidents and minimizing risks, which is why we have integrated safety features to all our storage systems. Our solutions are built according to the latest standards and provide lasting safety.
-default-webp.webp "Mechanical Electronic")

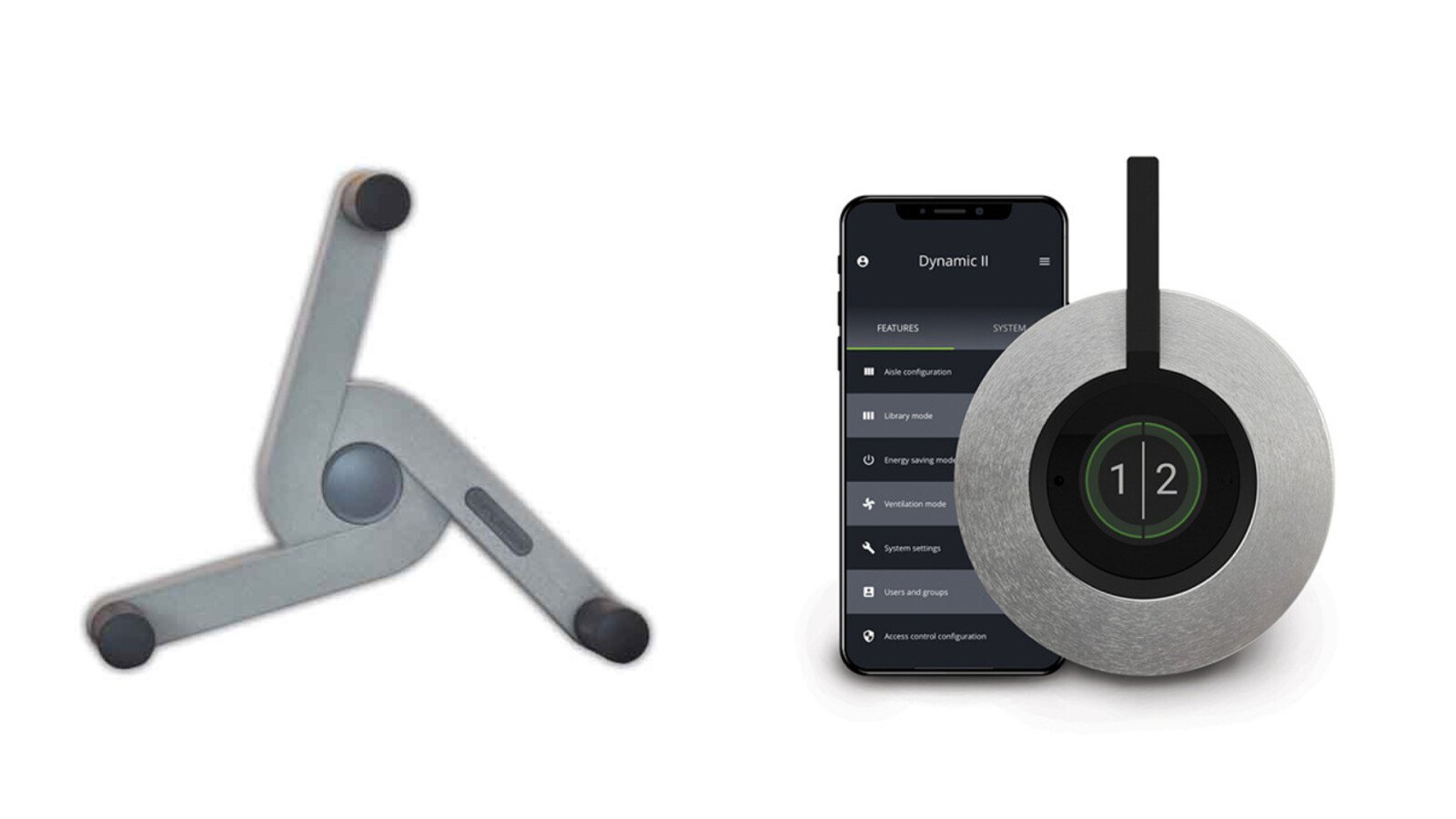

Drive System
Electronic & Mechanical Safety Features
Mechanical and electronic mobile shelving systems come with different safety features. On this page, you’ll find a clear overview of the specific safety features for each type of system, designed to protect users and stored items.
Notelectronic
SafetyMaster®
Our SafetyMaster® is designed to keep users and products safe. It combines several safety systems in one and is an essential feature for all electronic systems. This feature makes our Compactus® family even safer, offering the highest level of protection. Our SafetyMaster® is an advanced safety feature packed with extensive functionalities, and we've dedicated a full page detailing all its innovative safety solutions.
Electronic

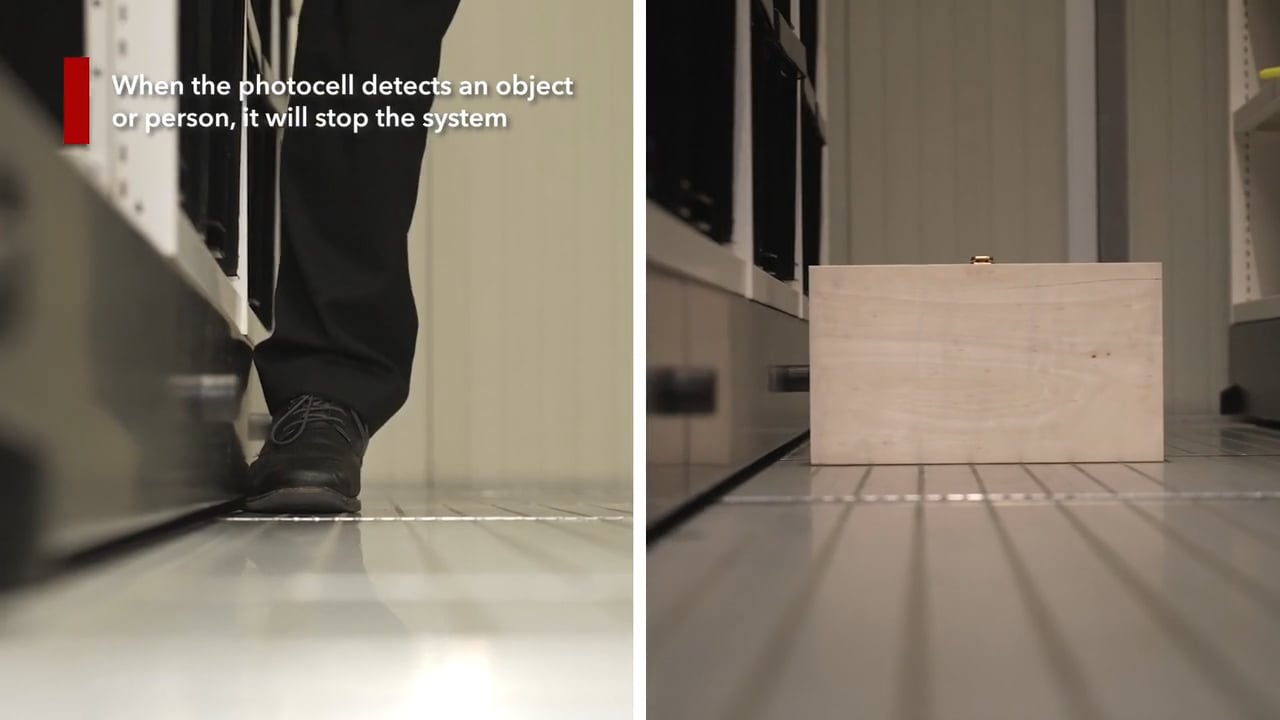

Photocells
Photocells are installed at the bottom of the mobile base depending on the weight and length of the mobile carriage. If the light beam is blocked by an object or person, the unit will automatically stop.
Electronic
Blockage Detection (MCMS)
Motor Current Monitoring System (MCMS), with active retraction. The system is able to detect an increase in pressure against a moving mobile carriage. If this increase is detected the mobile carriage will perform a safety stop and retract approximately 100mm to ensure that persons or objects are not injured and/or entrapped.
Electronic
Emergency Stop
All mobile carriages are equipped with a control panel that allows users to stop the system at any time. Either by moving the handle or pressing the stop button on any control panel, the system will come to a complete stop.
Electronic

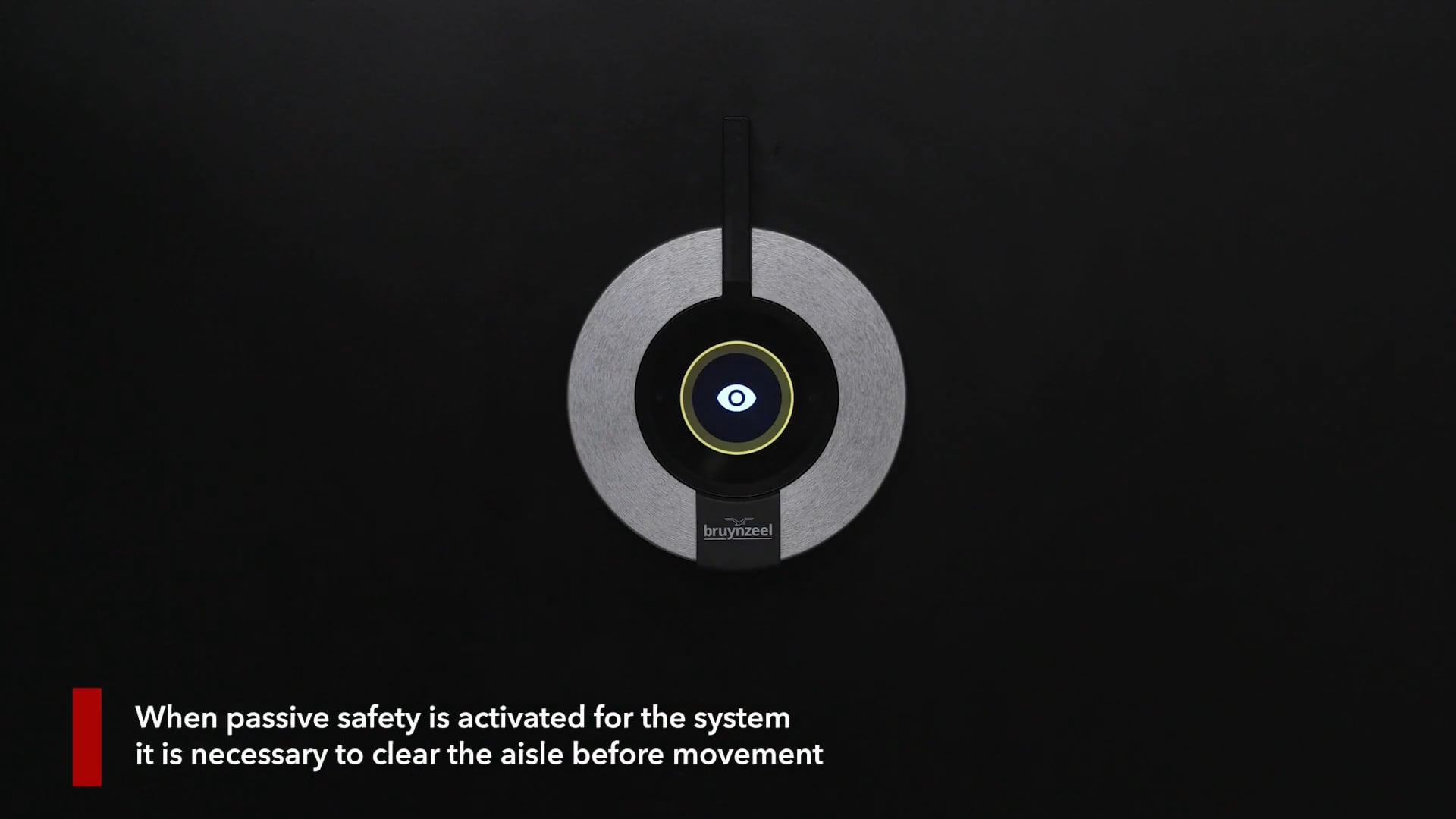

Visual Safety (Passive Safety)
This feature ensures users check if an open aisle is occupied by someone else and requires confirmation that the aisle is clear by touching both control panels on either side of the open aisle. Once confirmed, the system permits the user to open another aisle.
mechanical
Mechanical Safety Features
The safety features of mechanical mobile shelving systems are designed to protect people, prevent accidents, and ensure smooth operation. These features make the system secure and easy to use, prioritizing safety at all times.
Mechanical
Mechanical Safety Master

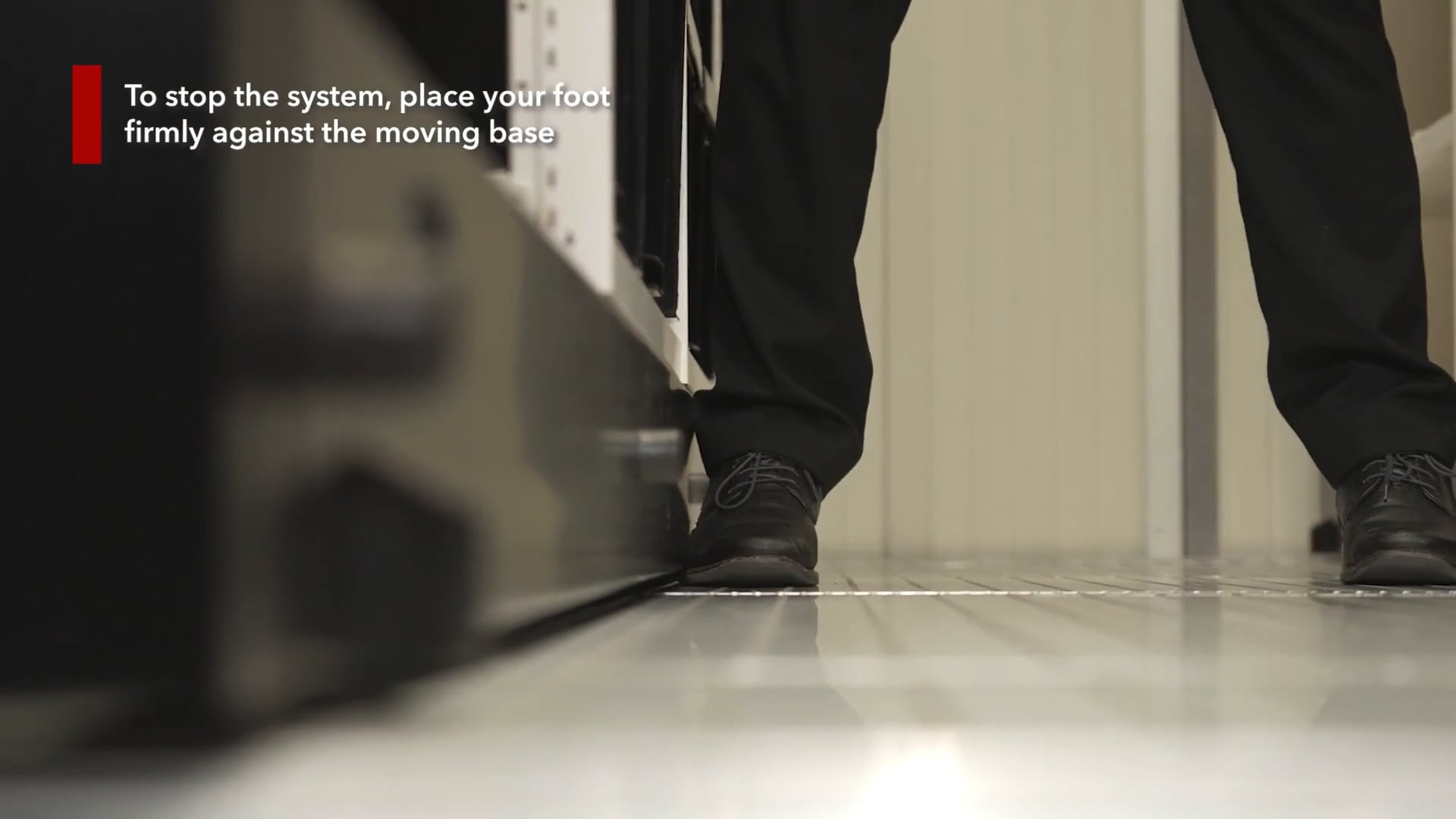

Our mechanical mobile systems are equipped with a safety bar that spans the entire length of the mobile unit. The bar can be pressed at any point along its length to bring the unit to an immediate, yet controlled stop.
Mechanical
Aisle Lock
To ensure safety, aisles can be locked to prevent any movement. Bruynzeel provides various locking options. You can lock an aisle using the push-and-pull lock built into the hand crank or opt for an integrated key lock, which also offers overall access control.
-default-webp.webp "Safety Buffer")
Mechanical

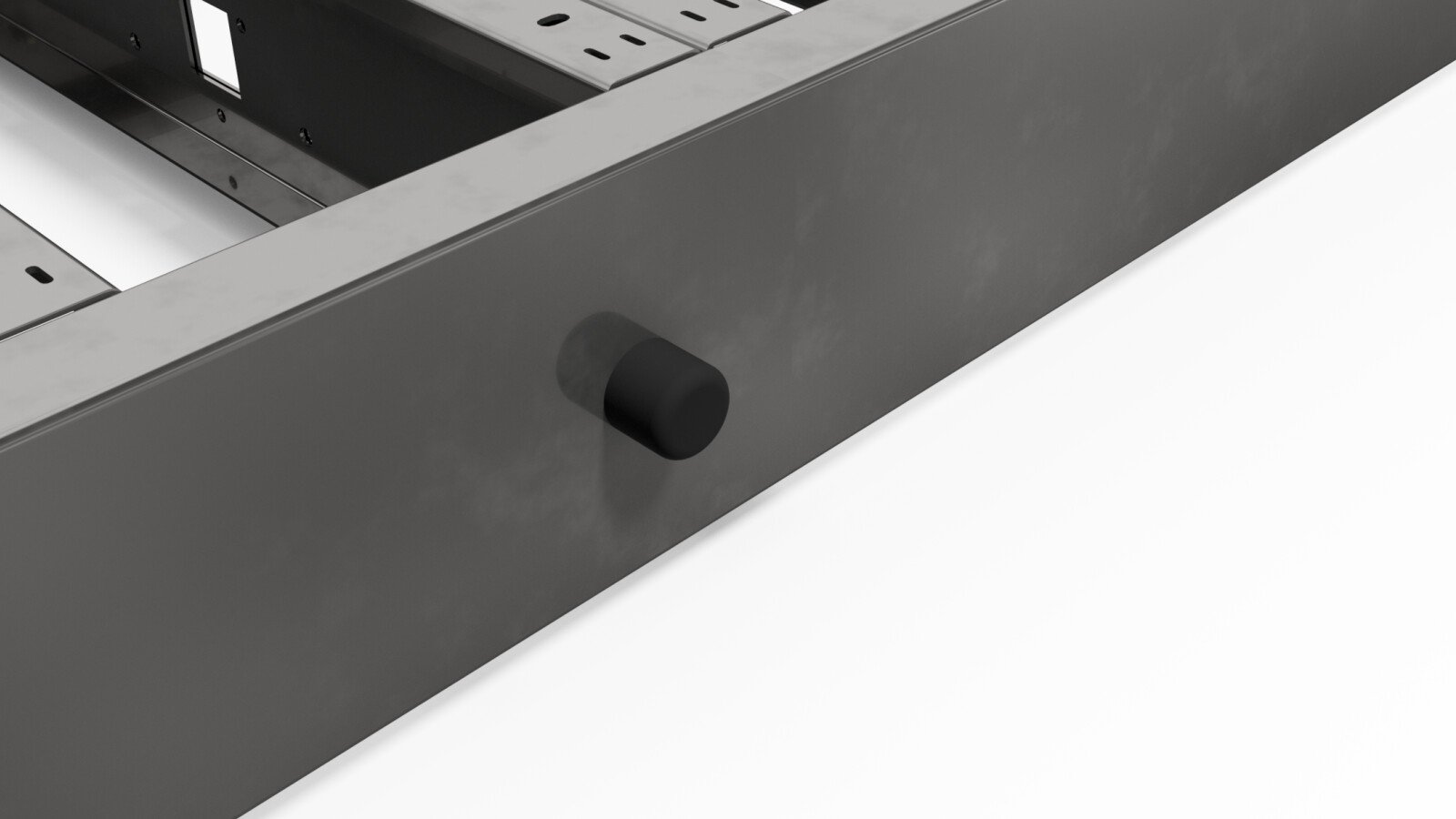

Safety Buffer
All mobile carriages are fitted with a safety buffer that maintains even gaps between them when closed, preventing accidental injuries to users.
Mechanical
Torque Limiter
The mobile carriage's driving system includes a torque limiter. If too much force is applied to the hand crank, the handcrank slips to stop the handle from rebounding. This helps prevent injuries and protects the system from damage.
